🌡️ Topic Introduction: ICU Layout Planning & Common Mistakes

The Intensive Care Unit (ICU) is the most sensitive and critical part of any hospital. It requires precision planning, compliance with healthcare codes, and a deep understanding of patient flow, infection control, emergency response, and staff efficiency.

However, many hospitals in Pakistan—especially private setups—face serious challenges because of poor ICU layout planning, resulting in:

  • High infection rates

  • Increased patient risk

  • Inefficient staff workflow

  • Difficult equipment movement

  • Poor monitoring visibility

  • Maintenance challenges

This article highlights the most common ICU Layout Planning Mistakes and explains how ACCO helps hospitals avoid them through proper planning and modern design standards.

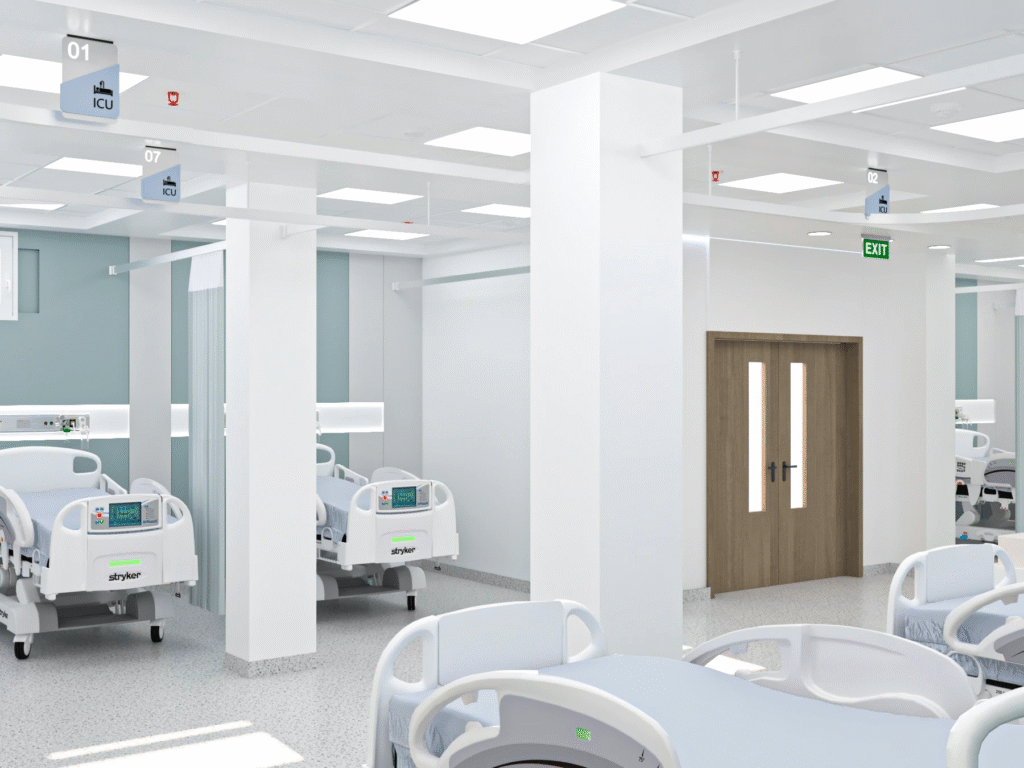

🏥 Complete Details: ICU Layout Planning — Most Common Mistakes

Below are the top mistakes hospitals often make in ICU planning, along with explanations and best practices.

1️⃣ Poor Space Allocation & Overcrowding

Many ICUs in Pakistan are built in small or congested spaces, limiting the ability to install required equipment.

❌ Common Mistakes

  • Beds placed too close (less than 10 ft apart)

  • Insufficient circulation space for trolleys

  • No designated family waiting zone

  • No segregation between critical & moderate patients

✅ Best Practice

  • Minimum 150–200 sq ft per bed

  • Adequate turning radius for beds & mobile equipment

  • Dedicated space for quick-response teams

  • Family waiting area OUTSIDE the ICU

2️⃣ Inadequate Zoning of Clean & Dirty Areas

ICUs must have strict separation between:

  • Clean corridor

  • Dirty corridor

  • Sterile storage

  • Soiled room

❌ Mistakes

  • One entry used for both staff & patients

  • No dirty utility area

  • Sterile items stored near patient beds

✅ Best Practice

  • Dual-corridor system

  • Clean & dirty materials follow one-way flow

  • Separate donning/doffing rooms

3️⃣ Poor Nurse Visibility & Monitoring

Nursing staff must be able to see every patient from a central location.

❌ Mistakes

  • Blind corners

  • Monitoring screens too far

  • High partitions blocking line-of-sight

✅ Best Practice

  • Central nurse station with 360° view

  • Glass partitions instead of solid walls

  • Central monitoring connected to all beds

4️⃣ Wrong Bed Orientation & Distances

❌ Mistakes

  • Beds placed facing each other

  • Insufficient spacing on both sides

  • No dedicated equipment zone

Recommended Distances

✔️ 5 ft clear area on each side of the bed
✔️ 10–12 ft between two beds
✔️ 15 ft minimum corridor width

Correct spacing reduces infection risk, improves workflow, and allows fast emergency response.

5️⃣ Inadequate Medical Gas Planning

ICUs require precise planning of:

  • Oxygen outlets

  • Vacuum outlets

  • Compressed air

  • AGSS (Anaesthetic Gas Scavenging System)

❌ Mistakes

  • Underestimating gas outlets

  • Low pipeline pressure

  • Gas taps placed too high or low

Best Practice

  • Minimum 3 oxygen + 2 vacuum + 2 air outlets per bed

  • Proper maintenance access

  • Color-coded pipelines per international standards

6️⃣ Insufficient Electrical & UPS Backup

ICU equipment must NEVER lose power.

❌ Mistakes

  • Shared circuits

  • No dedicated UPS

  • No surge protection

  • Insufficient sockets (common problem in Pakistan)

Best Practice

  • Dedicated power circuits for each bed

  • Minimum 12–15 electrical outlets per bed

  • Life-safety UPS system with 2–4 hrs backup

  • Generator auto-transfer system

7️⃣ HVAC & Ventilation Mistakes (Major Issue in Pakistan)

HVAC issues can cause HAIs (Hospital-Acquired Infections).

❌ Mistakes

  • Non-HEPA air supply

  • Recirculated air

  • High humidity

  • Wrong air pressure

Required Standards

✔️ Temperature: 22–24°C
✔️ Humidity: 40–60%
✔️ Air Changes: >12 ACH
✔️ HEPA filters
✔️ Positive/negative zones

Incorrect HVAC design is one of the biggest ICU Layout Planning Mistakes.

8️⃣ Poor Infection Control Planning

❌ Mistakes

  • No isolation rooms

  • No hand-washing stations

  • No doffing area

  • Waste bins inside corridors

Best Practice

  • At least 1–2 negative pressure isolation rooms

  • Hand-washing outside & inside ICU

  • Touchless faucets

  • Separate biomedical waste room

9️⃣ Poor Biomedical Equipment Planning

Equipment movement requires space and pathways.

❌ Mistakes

  • No dedicated equipment parking zone

  • Narrow doors (< 4 ft)

  • No cable management system

Best Practice

  • 10–15 ft wide corridors

  • Overhead pendant systems

  • Equipment storage room inside ICU zone

🔟 Improper Workflow Design

An ICU must be planned according to:

  • Patient flow

  • Doctor & nurse movement

  • Emergency routes

  • Diagnostic access (X-Ray, CT)

❌ Mistakes

  • Using a “copy-paste” layout from other hospitals

  • No clinical workflow study

  • No coordination with medical staff

Best Practice

  • Conduct workflow mapping

  • Consultation with ICU specialists

  • Fast-access routes for crash teams

1️⃣1️⃣ Lack of Fire Safety & Emergency Exits

❌ Mistakes

  • No fire-rated doors

  • No smoke detectors

  • No evacuation plan

  • ICU located far from emergency exits

Best Practice

  • 2-hour fire-rated walls

  • Fire suppression system

  • Fire alarm & smoke detection

  • Refuge area planning

1️⃣2️⃣ Noise & Privacy Issues

ICU noise can impact patient recovery.

❌ Mistakes

  • Nurse station placed too close

  • No acoustic insulation

  • Staff conversations audible to patients

Best Practice

  • Soundproof partitions

  • Soft flooring materials

  • Strategic nurse station placement

Pros & Cons of a Well-Designed ICU Layout

👍 Pros

  • Better infection control

  • Faster emergency response

  • Improved patient safety

  • Staff efficiency increases

  • Reduced maintenance cost

  • Higher hospital reputation

  • Smooth equipment movement

👎 Cons of Poor ICU Layout

  • Increased infection rates

  • High patient mortality risk

  • Staff burnout

  • Frequent equipment failure

  • Poor patient outcomes

  • Legal & regulatory problems

❓ Frequently Asked Questions (FAQs)

1. What are the key components of an ICU layout?

Nurse station, patient zones, isolation rooms, medical gas system, HVAC, clean/dirty zones, equipment rooms.

2. What is the ideal spacing between two ICU beds?

10–12 feet minimum.

3. Why is HVAC so important in ICU design?

Because it controls infection, air quality, humidity, and patient safety.

4. How many electrical outlets should each ICU bed have?

Minimum 12–15, including UPS-backed outlets.

5. Should ICU have isolation rooms?

Yes, at least 1–2 negative-pressure rooms are mandatory.

🧩 Internal Links (Suggested)

  • House Construction in DHA Lahore

  • Commercial Plaza Builders Lahore

  • Hospital Construction Services — ACCO Engineering

  • PEB Structure Services Lahore

🌍 External Links (High Authority)

  • DAWN News – Healthcare & Infrastructure

  • ArchDaily – Hospital Design Trends

  • WHO Guidelines on ICU Design

  • Pakistan Engineering Council Standards

🟦 Final Verdict

Planning an ICU is not just about placing beds and machines—it requires scientific planning, clinical understanding, and strict compliance with healthcare standards.

Most hospitals in Pakistan make avoidable ICU layout planning mistakes, leading to:

⚠️ Poor patient outcomes
⚠️ Inefficiency
⚠️ Higher infection rates

With ACCO’s specialized team of hospital planners, architects, MEP experts, and biomedical engineers, you can ensure your ICU meets international healthcare standards.
